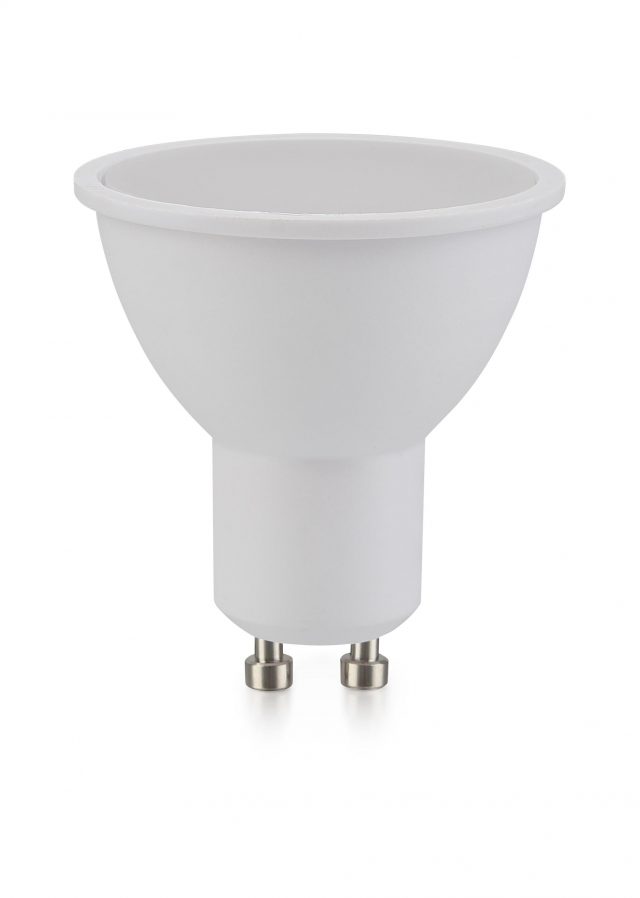

ESS2121A 5W LED SPOT LIGHT
- General Details
- Technical Information
- Product Dimension
- Order Enquiry
Item No.: ESS2121A
Wattage: 5W
Voltage: AC 220-240V
Dimension: 50*55mm
Certification
- ISO9000:2013, CE, ROHS, SAA approval
Areas of Application
- Domestic application
- General illumination
- Outdoor application only in IP65 aboved light fitting.
Electrical Data
Rated Voltage AC220-240V
Operating Frequency 50/60Hz
Rated lamp Wattage 5.0W
Lamp Wattage Rang Rated Value ±10%, 4.1W-5.5W
Dimming NO
Lamp Current (Operation without dimmer at test voltage) 45mA
Power Factor (Operation without dimmer at test voltage) ≥0.5
Claimed Equiv. conventional lamp power 35W
Photometry Data
Color Temperature 2700K (4000K, 6000K, 6500K are avaliable)
Light Color (Designation) Warmwhite (Pure white, Cool White are avaliable)
Rated luminous flux (Base up, 25℃, 0h) 425lm
Rated Color Rendering Index ≥80
Rated Luminous effificacy 85lm/W
Energy Lable A+
Min. luminous flux (base up, single lamp) 90% of rated flux
Starting time at the minimum range line voltage (25℃ ) <0.5s
Rated Beam Angle 175°
Geometrical Data
LED Type SMD2835
Base (Standard designation) E27 (E26 avaliable)
Overall Length 50 mm
Outline Diameter 55 mm
Estimated Weight 50g
Lifespan Time
Nominal Lamp Life Time 25000hrs
Rated Lamp Life Time 25000hrs
Number of switching cycles 100000
